Principle of Lock Stitch Formation
Rahat Khan
Dept. of Apparel Manufacturing
Atish Dipankar University of Science and Technology
Cell: +8801717781833
Email: rahat.info@gmail.com

Lock stitch formation is very important for stitching mechanism. The mechanism of lock stitch formation can be illustrated as below-

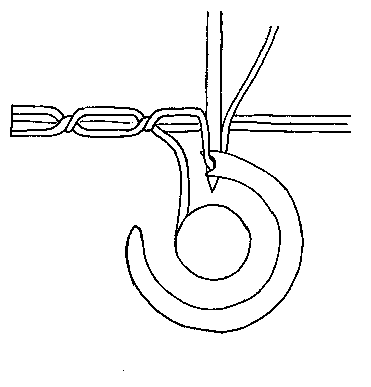

Mechanism of lock stitch formation

The steps of a stitch: Put the picture for each step before the corresponding explanation.

The five steps of a lock stitch formation:

Step 1:

Needle penetrates the fabric to bring top thread into bobbin area.

Step 2:

The needle begins to lift and as the needle rises, top thread forms a loop for shuttle hook to catch.

Step 3:

Shuttle hook carries the thread loop around and under the bobbin case.

Step 4:

Loop slides off hook and bobbin case, goes around bobbin thread.

Step 5:

The threads are pulled up and are set into the fabric as a lock stitch.
