Yaa Garment Washing: An Effective Procedure For Beautification Of Garments (Part-6)

Garment Washing: An Effective Process for Beautification of Garments (Part-6)

Rahat Khan
Dept. of Apparel Manufacturing
Atish Dipankar University of Science together with Technology
Cell: +8801717781833
Email: rahat.info@gmail.com

Previous Part

Chapter v
Test physical care for

5.1 Test procedure:
The next are the names of the tests that accept been done during the projection run

• Strength loss
• Color fastness to washing (washing)
• Color fastness rubbing (crocking test)
• Dimensional stability
• Weight loss
• Outlook modify / Visual assessment

5.1.1 Strength loss
Since a considerable amount of impurities (dirt, dust) are removed inward washing process, the strength loss of fabrics tin flame live a parameter .For garments washing for this test, the strength of the garments sample earlier together with later on washing is measured past times whatsoever stuff strength tester.

Strength tester:

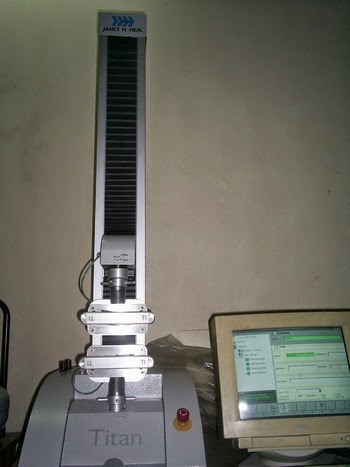

Fig-15: Titan strength tester

Working Procedure:

• The terminate of the sample was placed on the upper clamp inward the titan universal strength tester machine.
• Then other purpose of the sample was placed on the bottom clamp inward the titan universal strength tester machine.
• By using motion indicator, both clamps was shut or fixed.
• Then the machine was started together with both the clamps were moving, upper clamp to the upper management together with bottom clamp to the lower direction.
• After a for sure fourth dimension when the stuff could non behave the extension charge the it breaks together with machine stopped.
• Finally, the resultant was shown inward the monitor of the titan universal strength tester machine.

Fig-16: Sample (before strength test)

Fig-17: Sample (after strength test)

Experimental data:
Strength exam past times strength tester.

No.	Sample type	Sample direction	Maximum force N	Extension %	Time to break S
1.	Basic	Warp	965	9.28	34.3
2.		Weft	1050	43.87	54.2
3.	Enzyme	Warp	795.14	27.40	49.2
4.		Weft	762.27	55.40	51.0
5.	Stone Enzyme	Warp	958.49	26.85	60.8
6.		Weft	1014.26	65.13	55.3
7.	Pattern whicker	Warp	768.9	32.8	42.3
8.		Weft	623.80	48.90	47.5
9.	Hand whicker	Warp	960.59	35.32	133.6
10.		Weft	919.47	56.81	49.0
11.	Medium bleach	Warp	901.08	29.24	65.8
12.		Weft	804.95	57.44	49.3
13.	Light bleach	Warp	701	19.60	76.8
14.		Weft	831	53.99	62.9
15.	Potassium permanganate amongst tinting	Warp	914.81	34.14	77.4
16.		Weft	846.25	62.35	59.5



5.1.2 Color fastness (washing)
Color Fastness to washing is i of the of import dyeing properties to the consumers.

There is a multifariousness of testing physical care for to about extent, these accept arisen:

• Washing status vary from i province to another
• The method depends on the footing of the stuff used.

Apparatus & Material:

• Wash-wheel amongst a thermostatically controlled H2O lav & rotating speed of 40±2 rpm.
• Stainless steel container
• Stainless steel bowl
• Multi-Fiber stuff

1. Wool
2. Acrylic
3. Polyester
4. Nylon
5. Cotton
6. Acetate.

• Sewing machine
• Dryer
• ISO type grayness scale for changing
• ISO type grayness scale for staining

Fig-18: Gyrowash

Reagents:

• Detergent (without optical brightener)
• Sodium Carbonate
• Distilled H2O

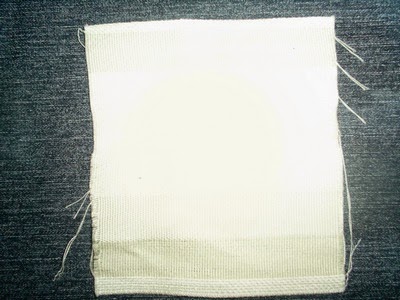

Test specimen:
If the textile to live tested is fabric: cutting out a specimen of 10cmX 4cm & brand for sure all color is included inward it. Sew it along all 4 edges amongst the same size of multi fiber fabric.

Recipe:

• Detergent : 5gm/L
• M:L :1:5
• Soda :2gm
• Time :30min
• Temperature :600c

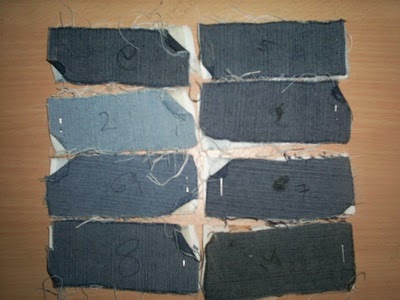

Fig-19: Sample (After test)

Fig-20: Sample (After test)

Fig-21: Multi fiber strip

Test physical care for (based on ISO: 103/5):

• 5gm detergent was Dissolved inward to 1 liter of H2O
• 2gm sodium carbonate Dissolved inward to 1 liter of H2O
• The machine temperature was Raised to 600c
• The specimen was seat inward to the stainless steel container
• The stainless steel container amongst specimen was seat inward to the machine
• The machine was kept running for xxx mo
• Excess H2O was Extracted from specimen past times squeezing
• The specimen was dried amongst manus dryer

Evaluation:
The contrast betwixt white rubbing cloth was Compared amongst the staining grayness scale & rated from 1-5 & changing inward the tested specimen amongst changing grayness scale.

Experimental information for washing fastness:

No.	Name	Grading for color fastness
1.	Denim stuff without wash	4/5
2.	Super bleach wash	5
3.	Medium bleach wash	4/5
4.	Stone enzyme	5
5.	Enzyme wash	5
6.	Hand whicker	4/5
7.	Pattern whicker	4/5
8.	Potassium permanganate	1/2

Average grade/ attain of testing: 1-5 grades
Interpretation of grade: (5) Excellent, (4) Good, (3) Fair, (2) Poor, (1) Very pitiable

Grading for staining
No.	Name	Acetate	Cotton	Nylon	Polyester	Acrylic	Wool
1.	Denim stuff without wash	1	4	½	4	4/5	¾
2.	Super bleach wash	½	½	2	4/5	5	4
3.	Medium bleach wash	½	4/5	2/3	4/5	5	¾
4.	Stone enzyme wash	½	4/5	2	4/5	4/5	4/5
5.	Enzyme wash	2/3	4/5	2	4/5	4/5	4
6.	Hand brush	½	4/5	2	4/5	4/5	4/5
7.	Machine brush	½	4/5	2	4/5	5	5
8.	Potassium permanganate	3	4/5	4	¾	1	4

Average grade/ attain of testing: 1-5 grades
Interpretation of grade: (5) Excellent, (4) Good, (3) Fair, (2) Poor, (1) Very pitiable
