What is Needle:
Needle is used to sew the fabric by thread.

Way of needle movement is related to:

Seam strength.
Seam appearance.
Seam durability.

Functions of needle in the sewing m/c:

To make a hole in the fabric without damaging the threads of the fabric.
To make a needle thread loop.
To pass the needle thread loop through the loop or loops of the looper thread.

Anatomy of needle

Functions of different components of a needle:

Butt: For setting the needle on to the needle bar or clamp.

Shank: Upper part of the needle which is tied in the needle bar and which supports the needle.

Shoulder: Middle part of the shank and blade is shoulder. It helps to make the hole of the fabric and strengthen the needle blade.

Blade: Longest part of the needle from the shoulder to needle eye. In this portion, friction between fabric and needle is maximum. Blade is gradually tapered to tip.

Long groove: The long and thin groove between shoulders to needle eye in the blade is called long groove. When the needle penetrates the fabric with needle thread, needle thread takes position in the long groove.

Eye: The hole present in the front of the needle is called eye. Eye through which sewing thread is passed.

Scarf: The groove of the needle above the eye is called scarf. Its purpose is to enable the closer setting of looper to the needle.

Point: The portion from the eye to the tip of the needle is called point. Point should be different for different type of fabric.

Tip: The last (extreme end) part of the needle is called tip. It helps to create hole in the fabric during sewing.

Classification of needle point:
The portion from the eye to the tip of the needle is called needle point.

Two types of needle point-

Cutting point.
Cloth point.

Cloth point:
Cloth point / Round point needles used for sewing cloths. The point of cloth point needle is round.

Two types of cloth points:

Set point.
Ball point.

Set point: Set point needles used for sewing woven fabrics.

3 types of set points namely:

Slim set point: For sewing densely woven fabric or top stitching like collar, cuff and pockets.
Set point: For sewing medium densely woven fabrics.
Heavy set point: For sewing buttons ( attaching buttons)

Set point

Ball point: Ball point needles used for sewing knitted garments.

Ball point needles are of 3 types:

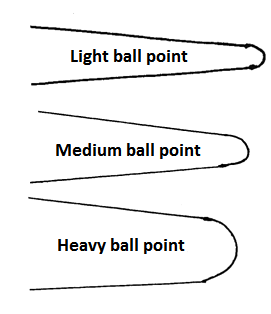

Light ball point.
Medium ball point.
Heavy ball point.

Ball point

Needle size expression

Metric system (Nm):
Easy process, most usable, based on blade diameter.

Needle size = Blade dia in mm X 100
= 0.8 mm X 100
=80 Nm.

Singer system:
5, 7, 9, 10, 11, 12, 13, 14, 15, 16, 17.
Needle system number more, needle coarser.
