Selection of Attachment Buttons for a Textile Shopping Trolley

Edward Calleja Stafrace
Dept. of Mechanical Engineering
University of Malta.
Email: callejastafrace@gmail.com

Introduction:
After performing a determination matrix to conduct the way of attachment of the trolley to the frame, it was concluded that buttons volition live used. However, diverse types of buttons be inwards the textile industry, as well as unfortunately no numerical information regarding strengths were available.

Thus, it was decided that tests would live performed as well as information gathered to improve determine what type of push volition live used. Note that this is a really of import exercise, since the trolley as well as the attached handbasket are expected to withstand 100kg of weight (including security factor) without failure. If the trolley were to neglect (failure includes the buttons fracturing or exactly detaching) the user would live lay inwards danger since the wheelchair is closely attached to the trolley.

Different buttons

Thus a unproblematic examination was performed. The origin footstep was to notice a supplier to professionally prepare samples. Yorkie Clothing Ind. Ltd was to a greater extent than than eager to help, every bit nosotros promised to portion our results amongst them. The samples prepared mimicked loops, which are like to what volition live used inwards the design. The sample buttons were line per unit of measurement area buttons, shirt buttons as well as jeans buttons. In addition, nosotros prepared samples amongst 2 buttons per loop, inwards fellowship to position the human relationship amongst doubling the expose of buttons to strength.

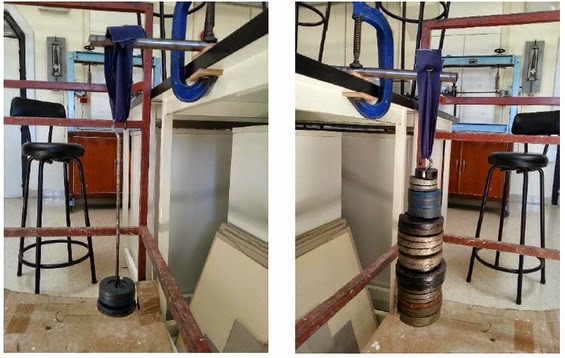

After applied load

The laid upwardly consisted of a rod clamped to a table, the sample acting every bit a sleeve to the rod amongst buttons facing upwards, as well as weights attached to the underside of the loop sample. We started amongst the unmarried line per unit of measurement area push sample, as well as started loading weights inwards the fellowship of 200g. The experiment was performed twice per push each time. The line per unit of measurement area push failed non-destructively ( it detached) at 4.9kg origin as well as mo fourth dimension 5.2kg. Thus it was concluded that it could safely concur upwardly to 4.5kg of forcefulness per push loop. Next, the loop sample amongst 2 line per unit of measurement area buttons was tested, as well as the experimental charge it failed at was 8kg of forcefulness as well as therefore is rubber to purpose amongst 7.5kg of weight.[ Note that the charge is non double but about x1.5 times.]

Next the shirt-button sample was tested, as well as it managed to sustain an astonishing 29kg earlier all of a abrupt failing. However, it was genuinely the fabric underneath which failed, every bit a pinhole was left behind as well as the thread of the push silent perfectly intact. Hence it was concluded to live rubber upwardly to 25kg of load. Note that the exclusively disadvantage amongst using a shirt push is that it suffers from fatigue as well as could neglect afterward purpose for a expose of years, it is also non really durable as well as could fracture nether impact.

The lastly button type tested was the jeans button. The sample fractured at the large charge of 33kg. Hence it was concluded that it could safely withstand upwardly to 30kg of weighted loads. The push remained inwards perfect status afterward testing, it did non fracture, but exerted a large stress at the yell for of contact as well as forced the fabric to rupture. The lastly sample tested was the double jeans button, as well as the examination could non live completed every bit it withstood 40kg of weights as well as the lab could non render us amongst to a greater extent than loads. However, it is thus rubber to state that the best alternative inwards damage of strength is the loop consisting of 2 jeans buttons.

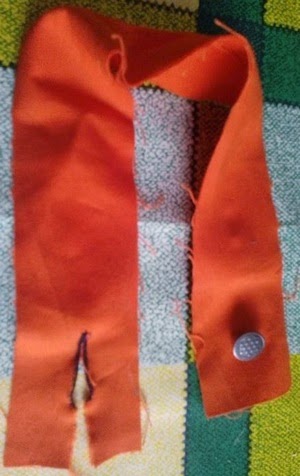

Load applied on button

The selected button, however, volition non exclusively live selected yesteryear evaluating maximum strength but also on other factors. Firstly is the cost.

Button Type	Raw Cost/€	WIP Time/s	Labour Rate (china)* /€	Labour Rate (Malta)*/ €	Total China/€	Total Malta/€
Pressure	0.07	22.74	0.045	0.095	0.115	0.165
Shirt	0.02	18.21	0.036	0.075	0.056	0.095
Jeans	0.05	20.57	0.041	0.085	0.091	0.135



*The typical wage charge per unit of measurement inwards china is 12c/min as well as inwards Republic of Malta is 25c/min

As tin flame live seen from the inwards a higher house table, the costs considered are really low, for both possible situations if manufactured inwards mainland People's Republic of China or inwards Malta. Hence toll volition live ignored for the component selection exercise. Therefore, the best suited push type volition live the jeans push every bit it is of outstanding charge capability as well as is of average labour fourth dimension as well as cost. The jeans offers the wages of existence highly durable, affect as well as degradation resistant as well as does non endure fatigue failure. The exclusively disadvantage over line per unit of measurement area buttons is that it requires a picayune to a greater extent than fourth dimension to unopen through the push hole, nevertheless this every bit good is insignificant.
